MAX Case Calculator

Internal dimensions

Filter By
Internal Sizes

		Type	Internal (mm)			External (mm)			Int. Depth (mm)		Weight (kg)
		Type
Max Case MAX001	-		157	82	41	175	115	47	12	29	0.16	N/A
Max Case MAX001VT Transparent	-		157	82	41	175	115	47	12	29	0.16	N/A
Max Case MAX200	-		200	125	90	223	172	102	22	68	0.54	0.65
Max Case MAX002	-		212	140	47	230	175	53	14	33	0.3	N/A
Max Case MAX002T	-		212	140	47	230	175	53	14	33	0.3	N/A
Max Case MAX235H105	-		235	180	106	258	243	118	25	81	0.91	N/A
Max Case MAX235H155	-		235	180	156	258	243	168	25	131	1.07	N/A
Max Case MAX003 Black	-		316	195	53	350	230	59	16	37	0.48	0.52
Max Case MAX004 Black	-		316	195	81	350	230	86	16	65	0.54	0.586
Max Case MAX380H115	-		380	270	115	414	345	129	36	79	1.86	2.02
Max Case MAX380H160	-		380	270	160	414	315	174	36	124	2.45	N/A
Max Case MAX400 Top-Loader Case	-		400	230	260	456	290	318	47	213	2.4	2.7

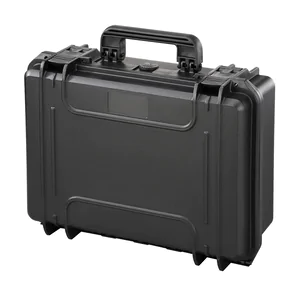

Max Case MAX430	-		426	290	159	464	366	176	45	114	2.7	N/A
Max Case MAX465H125	-		465	335	125	502	415	141	40	85	2.62	N/A
Max Case MAX465H220 Black	-		465	335	220	502	415	246	40	180	2.62	N/A
Max Case MAX465H220TR Black with Wheels	Yes		465	335	220	502	415	267	40	180	2.62	N/A
Max Case MAX485 Backpack Case	-		485	357	201	544	408	216	80	122	3.44	N/A
Max Case MAX505	-		500	350	194	555	428	211	58	136	3.9	4.38
Max Case MAX505TR Case with Wheels	Yes		500	350	194	555	445	258	58	136	5.04	N/A
Max Case MAX505H280	Optional		500	350	280	555	428	306	58	222	5.1	N/A
